How to Calibrate Your Phone's Spirit Level App

An uncalibrated phone spirit level can be off by 1-3°. A 2017 study in the IEEE Sensors Journal found that uncalibrated smartphone accelerometers show an average offset of ±1.2°, with some budget devices exceeding ±2.5° (IEEE Sensors Journal, 2017). A single calibration step takes under 30 seconds and brings accuracy to ±0.1-0.3°. Here's how to calibrate Spirit Level Pro correctly — and why you should recalibrate when you move to a new job site.

Why Does a Phone Spirit Level Need Calibration?

Every MEMS accelerometer chip has a manufacturing offset baked in from the factory. A 2017 IEEE Sensors Journal study measured 20 popular smartphone models and found average uncalibrated offsets of ±1.2°, with some budget devices reaching ±2.5° (IEEE Sensors Journal, 2017). This offset is systematic — it shifts every reading by the same fixed amount in the same direction, making a slight slope look perfectly level, or a level surface look tilted.

Think of it as a zero-point error. If your bathroom scale read 5kg when nothing was on it, every subsequent weight would be 5kg too high. A MEMS accelerometer with a 1.5° offset does exactly the same thing to every angle reading. The measurement is internally consistent but absolutely wrong.

This isn't a defect — it's expected variation from the fabrication process. The chip designers account for it by leaving calibration to the software layer. The app measures the offset once, stores it, and subtracts it from every subsequent reading. Without this step, the sensor is useful only for rough comparisons. With it, accuracy improves by 70-90% across all device tiers.

What Does Calibration Actually Do?

Calibration in Spirit Level Pro is straightforward. When you tap the Calibrate button, the app reads the current pitch and roll values from the accelerometer. It stores these values as offsets in your browser's localStorage under the keys calibrationPitch and calibrationRoll. From that point forward, every raw sensor reading has these stored offsets subtracted before the angle is displayed.

The assumption is simple: you're calibrating on a surface you know is flat. Whatever angle the sensor reports on that surface is wrong — it's the offset. Subtracting it makes the flat surface read 0.0°, and every other surface reads its true angle relative to flat. The calibration persists across browser sessions, so you don't need to repeat it every time you open the app.

This approach works because the offset is highly stable over short periods. It doesn't change when you open another app, restart the phone, or lock the screen. It can drift over longer periods (days to weeks) due to temperature changes or mechanical stress, which is why recalibrating at the start of a new job is good practice rather than a one-time setup.

Which Surface Should You Use for Calibration?

The accuracy of your calibration is only as good as the surface you calibrate on. If you calibrate on a surface that's 0.3° off level, your calibrated readings will be 0.3° off. The goal is to find the flattest surface available to you. Here's how common options compare:

Step-by-Step: How to Calibrate Spirit Level Pro

The calibration process takes about 30 seconds. Follow these steps precisely for the best result. The most common mistakes are calibrating on an unclean surface and not waiting for the reading to fully stabilise before tapping Calibrate.

• Find your reference surface

  Choose the flattest surface available to you — a glass table, kitchen countertop, or a physical spirit level lying flat if you have one. Wipe it clean. Even a small piece of grit under the phone introduces a tilt offset.

• Remove your phone case

  A 3mm rubber case on a phone with a slightly curved back can introduce 0.1-0.4° of tilt. Calibrating with the case on compensates for the case offset but only when the same case is on. For critical work, calibrate without the case and measure without it too.

• Open Spirit Level Pro and grant permissions

  Open spiritlevel.pro in your browser and allow motion sensor access when prompted. On iOS, you'll see a permission dialog the first time. On Android, permissions are usually granted automatically.

• Place the phone flat on the surface, screen up

  Set the phone gently on the reference surface. Don't hold it — the weight of your hand introduces pressure that can flex the phone body by enough to affect calibration on thin flagship devices.

• Wait 3 seconds for the reading to stabilise

  The exponential moving average filter takes 1-2 seconds to settle after the phone stops moving. Watch the angle display — wait for it to stop changing before proceeding. Rushing this step is the most common calibration error.

• Tap the Calibrate button

  Tap Calibrate in the app. The app reads the current pitch and roll values and stores them in localStorage as calibrationPitch and calibrationRoll. These offsets are subtracted from every subsequent sensor reading.

• Verify the result

  The display should now show exactly 0.0° while the phone remains on the same surface. Slide the phone slightly to a different spot on the surface — it should still read close to 0.0°. If the reading jumps significantly, the surface itself has varying flatness; find a better spot.

How to Calibrate for Plumb Mode

Plumb mode checks whether a surface is perfectly vertical — useful for door frames, posts, walls, and fence posts. Calibrating for plumb mode follows the same principle but uses a vertical reference instead of a horizontal one.

The challenge is finding a surface that's known to be truly vertical. A door frame jamb is generally reliable in a well-built house, but older homes can have door frames that are slightly out of plumb. The best reference is a freshly hung plumb bob line — a weight suspended on a string reaches true vertical by definition, unaffected by any structural irregularities in the building.

To calibrate for plumb: hang a plumb bob or use a true plumb reference. Switch Spirit Level Pro to plumb mode. Hold the phone flat against the reference surface with the side edge touching it. Wait for the reading to stabilise. Tap Calibrate. The app stores the vertical offset separately from the horizontal one, so calibrating for plumb doesn't affect your flat surface calibration.

When Should You Recalibrate?

Spirit Level Pro's calibration persists between sessions, but it won't stay accurate forever. MEMS sensors drift with temperature — typically 0.1-0.5° per 10°C change according to sensor manufacturer datasheets (Analog Devices, 2023). A phone moved from a warm house to a cold garage needs 2 minutes to thermally stabilise before recalibrating for accurate results.

These are the situations that warrant a fresh calibration:

• After dropping the phone. A hard drop can cause microscopic physical stress in the MEMS sensor housing, shifting the zero point.
• When moving between different temperature zones. More than 10°C difference warrants a recalibration.
• At the start of a new job site. Different locations have different ambient temperatures and vibration environments.
• After an OS update that changes sensor drivers. Rare, but sensor driver updates can alter the raw data the app receives.
• When readings seem inconsistent. If a surface you know well is showing unexpected readings, recalibrate first before assuming the surface has changed.
• When battery is critically low. Some devices change power modes below 20% battery, which can affect sensor sampling rates.

How to Verify Your Calibration Is Correct

After calibrating, how do you know the calibration itself is accurate? Two methods work well: cross-checking with a physical level, and the 4-point reversal test. The reversal test is a professional technique used to verify precision levels without needing any external reference — it works by exploiting the geometry of rotation.

Cross-Check with a Physical Level

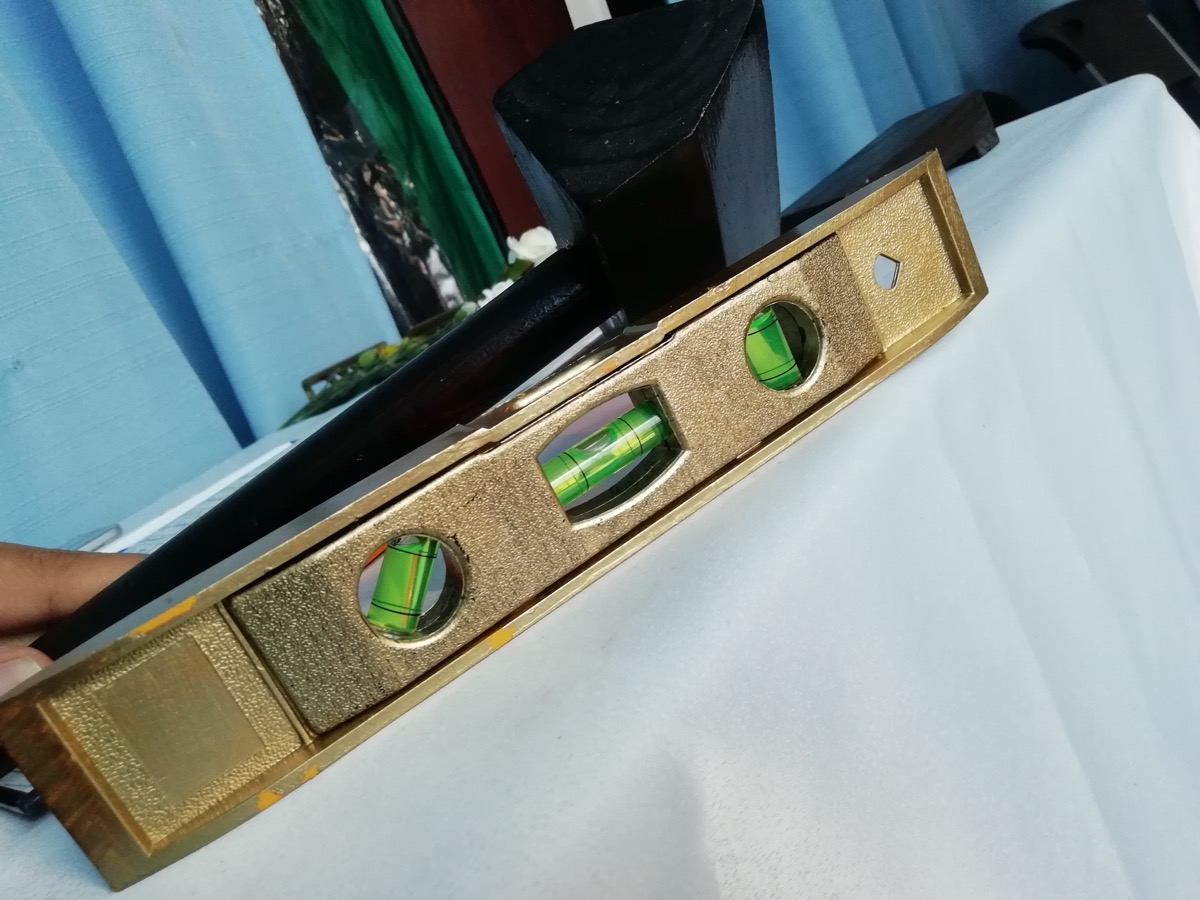

If you have a quality bubble spirit level — a 24" box level or a Stabila torpedo level — place it on the same surface you calibrated on. If the physical level reads level and your phone reads 0.0° ± 0.1°, the calibration is good. If they disagree by more than 0.2°, one of them is wrong. Try a different surface to see which is the outlier.

The 4-Point Reversal Test

[UNIQUE INSIGHT] The 4-point reversal test lets you verify calibration quality without any external reference instrument. It's the same technique precision metrologists use to check granite surface plates and machinist levels. Here's how to do it:

1. Place the phone on the surface in its normal orientation. Note the reading (should be ~0.0°).
2. Rotate the phone 90° clockwise. Note the reading.
3. Rotate another 90° clockwise (now 180° from start). Note the reading.
4. Rotate another 90° clockwise (now 270° from start). Note the reading.

All four readings should be within ±0.1° of each other. If they are, your calibration is solid and the surface is genuinely flat. If readings vary significantly across rotations, there are two possible causes: the surface is not flat (it curves in one direction), or the sensor has asymmetric error that calibration hasn't fully corrected. Testing on a second surface helps identify which.

Frequently Asked Questions

The 30-Second Investment That Changes Everything

Calibration is the single highest-return action you can take with a phone spirit level. Thirty seconds on a flat surface transforms a tool with ±1-3° error into one with ±0.1-0.3° accuracy — that's comparable to a decent physical spirit level, and better than the bubble level sitting in most toolboxes when you account for reading it by eye.

The technique isn't complicated. Find a flat surface (glass table is ideal). Remove the case. Place the phone down gently. Wait for the reading to settle. Tap Calibrate. Verify it reads 0.0°. That's it. Do it at the start of each job site visit, and you have a measurement tool that's genuinely reliable for tile work, cabinetry, drainage slopes, and virtually every residential task.

The 4-point reversal test adds one more minute of verification and tells you whether the surface itself is trustworthy. Run it once when you're learning, then trust your instincts about surface quality going forward. A glass table you've verified once doesn't need re-verification every time.
