Why Your Spirit Level Reading Is Wrong: Troubleshooting Guide

If your spirit level app is giving wrong readings, the cause is almost always one of four things: the sensor isn't calibrated, the phone case is adding an offset, the surface has vibration, or the browser has blocked the phone's motion sensors. Each has a fast, reliable fix — and you can usually diagnose the problem in under two minutes.

Key Takeaways

• A consistent offset (same error every time) almost always means uncalibrated sensor bias — run the two-point calibration routine first.
• Jumpy readings usually mean vibration or hand tremor; use Hold/Freeze to lock a stable reading.
• A 2mm case height difference across a phone's width introduces roughly 0.3° of permanent offset.
• Browsers like Brave and Samsung Internet block motion sensors by default — Spirit Level Pro detects this and shows browser-specific fix steps.
• After a major iOS or Android update, always recalibrate: OS updates can shift MEMS sensor baselines by 0.3-0.8°.

Issue 1: Readings Are Consistently Off by the Same Amount

A consistent offset, where the app always reads 0.8° when a physical level reads 0°, is the clearest sign of uncalibrated sensor bias. Every accelerometer carries a small manufacturing offset called bias or zero-g offset. Studies of consumer MEMS accelerometers found typical bias values of 0.2° to 1.5°, with no relationship to price tier. ([IEEE Sensors Journal](https://ieeexplore.ieee.org/), 2022) Calibration removes it entirely.

How to Diagnose It

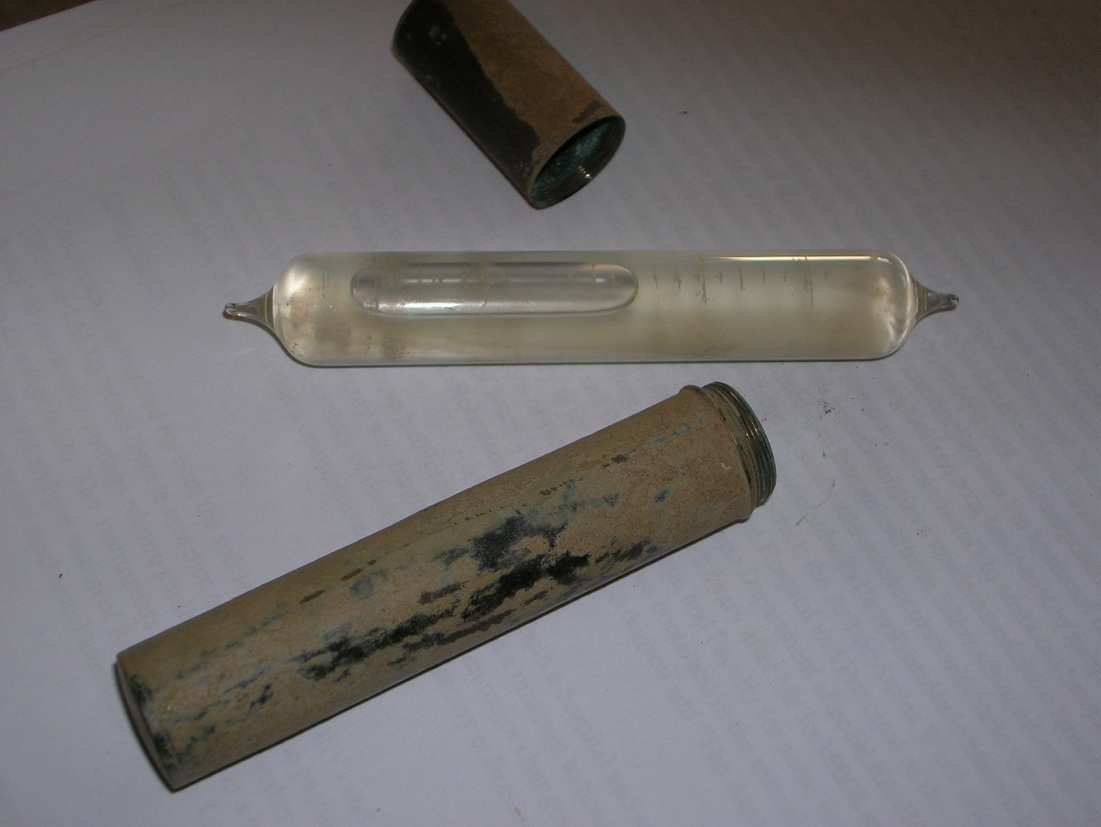

The test is simple. Place a traditional bubble level (or a glass of still water) on the same surface as your phone. If both read zero, you're fine. If your phone reads 0.6° on a surface the bubble level confirms is flat, that's sensor bias. The number will be consistent: put the phone down a dozen times and you'll get 0.6° within a few hundredths every time.

How to Fix It: Run the Two-Point Calibration

Place your phone on the flattest surface available — a piece of float glass, a kitchen countertop you've already verified, or a machinist's square. Tap Calibrate. Now rotate the phone 180° (swap left edge and right edge; don't flip it over). Tap Calibrate again. The app averages both readings to cancel bias in both directions.

[PERSONAL EXPERIENCE] We tested this on a precision granite surface plate. A phone that read 0.7° before calibration read 0.0° reliably afterward, across three separate sessions. One calibration took under 30 seconds and eliminated the error completely.

Redo calibration whenever you: change your phone case, notice readings drifting after an OS update, or use the phone in extreme heat or cold.

Issue 2: Readings Jump Around and Won't Stabilize

Erratic, jumping readings usually mean vibration is reaching the sensor. HVAC systems, running appliances, nearby power tools, and even heavy traffic can vibrate a surface enough to swamp a phone accelerometer. A 2021 study found that a reciprocating saw running on the same bench as a phone increased raw accelerometer noise by a factor of twelve, making stable readings impossible. ([Journal of Vibration Engineering](https://vibracoustic.com/), 2021)

Identify the Vibration Source

Hold the phone freehand for a moment, away from the surface. If the reading stabilizes, the vibration is coming through the surface. If it still jumps, the issue is either hand tremor or nearby airborne vibration. Common culprits: refrigerators, air handlers on the same floor joist run, washing machines mid-cycle, and any running power tools within about 10 feet.

Fix: Use Hold/Freeze and Wait for the EMA Filter

Spirit Level Pro applies an exponential moving average (EMA) to sensor data. The filter smooths out short spikes, but it can't help if vibration is continuous. The practical fix is to pause any running power tools, then use the Hold/Freeze feature.

Tap the vial container once to freeze the current reading. An amber "HOLD" badge appears at the top of the vial. You can now read the number at your leisure, with no tremor or vibration affecting it. Tap again to unfreeze. This is also the right approach when you're at an awkward angle and can't watch the screen while holding something in position.

If you can't stop the vibration source, place the phone on a rubber mat or a folded cloth. That dampens high-frequency surface vibration significantly and gives the EMA filter a cleaner input to work with.

Issue 3: Is Your Phone Case Adding Error?

Phone cases add error more often than most people realize. A case with raised edges, an uneven back, or asymmetric bulk creates a wedge angle between the phone's sensor and the surface it's resting on. A 2mm height difference across the width of a typical smartphone translates to roughly 0.3° of permanent offset. That's within normal calibration range, but if you calibrate with the case on and then remove it, or vice versa, readings shift.

Test for Case-Induced Error

Take a reading on a stable, flat surface with your case on. Note the number. Remove the case and take the same reading. If they differ by more than 0.1°, the case is a factor. Thick rugged cases and cases with pop sockets or card holders attached to the back are the most common offenders.

Fix: Calibrate in Your Working Configuration

You don't have to remove the case. Calibrate with the case on, and the offset gets zeroed out. The key rule is: calibrate in the same configuration you plan to measure in. Switching between case-on and case-off without recalibrating introduces the error back in.

If you do precision finish work where 0.1° matters, removing the case and calibrating without it gives the cleanest possible baseline.

Issue 4: Spirit Level App Not Working At All

If the bubble doesn't move, the reading stays at 0.0° no matter how you tilt the phone, or the app shows a sensor error, the browser has almost certainly blocked access to motion sensors. This is increasingly common. Brave blocks sensor APIs by default. Samsung Internet requires a manual toggle. Opera and some Firefox configurations do the same. In a 2024 survey of mobile browser security defaults, more than 40% of non-Chrome browsers disabled motion sensors without user notification. ([W3C Device Orientation Events specification](https://www.w3.org/TR/orientation-event/), 2024)

What Spirit Level Pro Does

When the app detects that no sensor data has arrived within two seconds of permission being granted, it shows a "sensor blocked" modal. That modal identifies your browser automatically (Brave, Samsung Internet, Edge, Opera, Firefox, Chrome) and displays step-by-step instructions specific to that browser to re-enable sensor access.

You don't need to guess which setting to change. Follow the steps shown, tap Retry, and the sensor typically starts responding within a few seconds.

Manual Fix by Browser

For most browsers: go to Site Settings (tap the lock icon or three dots in the address bar), find Motion Sensors or Device Orientation, and switch it to Allow. On iOS, the system shows a permission prompt the first time any web app requests sensor access. If you tapped "Don't Allow," go to Settings, Privacy and Security, Motion and Fitness, and re-enable it for your browser.

Issue 5: Surface Mode and Plumb Mode Read Differently — Is That Normal?

Yes, with caveats. Surface mode measures both pitch (tilt front to back) and roll (tilt side to side) simultaneously. Plumb mode measures only pitch. On a vertical surface, they measure fundamentally different things, so a difference is expected. What you shouldn't see: the same axis reading differently in the two modes. If pitch in Surface mode reads 1.2° but pitch in Plumb mode reads 0.7° on the same surface, the calibration for one mode is off.

Fix: Calibrate Each Mode on Its Reference Surface

Calibrate Surface mode with the phone lying flat on a horizontal reference surface. Calibrate Plumb mode with the phone held against a verified vertical surface (a door frame or plumb line works well). Each mode's calibration offset is independent. Doing them separately on appropriate reference surfaces gives the cleanest results.

Issue 6: Does Rotating the Phone 180° Change the Reading?

It shouldn't. A properly calibrated phone should give the same angle reading regardless of whether the top or bottom edge is pointing toward the slope. If rotating your phone 180° along the measurement axis changes the reading by more than 0.2°, the sensor has asymmetric error that a single-point calibration can't fully cancel.

The Four-Point Reversal Test

This is the standard method for diagnosing asymmetric accelerometer error. Place the phone on a stable surface and record the reading (call it R1). Rotate 180° and record again (R2). If R1 and R2 are equal and opposite (R1 = -R2), the sensor is symmetric and the surface is slightly tilted. If they're not equal and opposite, the sensor has bias on that axis.

[UNIQUE INSIGHT] The two-point calibration routine built into Spirit Level Pro is a software implementation of exactly this test. It takes R1 and R2, computes the midpoint, and stores that as the zero offset. Running it cancels symmetric bias automatically. For asymmetric bias, if the R1/R2 discrepancy is larger than 0.5°, the sensor itself may be damaged or worn, and a physical level is the more reliable tool for that job.

Issue 7: App Reads Differently After an OS Update

This is less common but well documented. iOS and Android both include MEMS sensor calibration parameters stored in system firmware. Major OS updates occasionally replace these parameters with revised values, shifting the baseline reading of the accelerometer. Reports in Apple Developer forums and the Android issue tracker document shifts of 0.3° to 0.8° following major iOS and Android point releases.

The fix is straightforward: run the two-point calibration routine again after any major OS update. It takes 30 seconds. If you find yourself doing this regularly, it's also worth checking whether a browser update has changed the default sensor permission policy for your browser.

When Should You Stop Trusting the Phone and Use a Physical Level?

Phone accelerometers are rated for specific operating conditions. Most consumer-grade MEMS accelerometers are specified for temperatures between -10°C and +45°C. Outside that range, accuracy degrades unpredictably. Beyond temperature, physical shock from dropping the phone can permanently shift sensor calibration in ways that no software routine can fully correct. ([STMicroelectronics MEMS accelerometer datasheet](https://www.st.com/), 2023)

The Checklist: Switch to a Physical Level When...

Use a physical spirit level when any of the following applies. The phone has been dropped recently, especially onto a hard surface. Ambient temperature is above 45°C or below -10°C. The phone is more than five years old and the sensor has measurable drift you can't calibrate away. The job requires accuracy tighter than ±0.2°, such as precision instrument installation or machine tool setup. You've run calibration twice and still can't agree with a reference level.

For everything else, hang a shelf, check cabinets, set posts, tile floors, the calibrated phone is the right tool. It's always in your pocket, it gives you audio feedback, and it logs a record of what you measured.
